ZX-Wiper™
Related products
Description

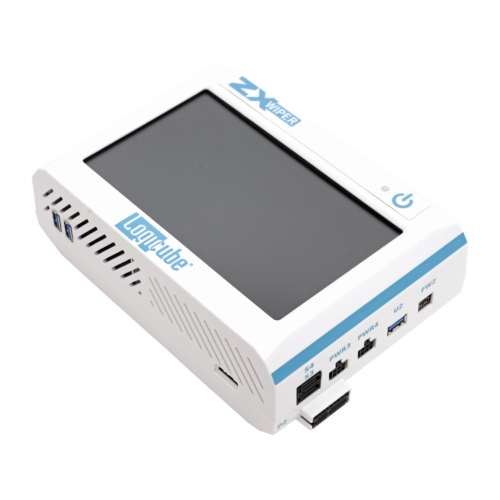

The ZX-Wiper is a High Speed, powerful, New-Generation Wiper, with speeds exceeding 60 GB/min in NVMe sanitization, equipped with 12 targets including SAS, SATA, USB, PCIe, FireWire & NVMe interfaces, supporting ITSP.40.006 v2 specifications and conforming to DoD 5220-M and NIST 800-88 guidelines. The ZX-Wiper™ solution provides secure wiping of hard disk drives and USB enclosures. This reliable solution allows organizations to easily comply with NIST800-88 Guidelines for media sanitization.
Description: The ZX-Wiper is a high-performance drive sanitization solution designed for IT professionals and enterprise environments. Securely wipe up to 12 drives simultaneously across SAS, SATA, USB, PCIe, FireWire, and NVMe interfaces at speeds exceeding 31GB/min, with up to 60GB/min on NVMe drives using the optional USB-to-NVMe adapter. Supports NIST 800-88, DoD 5220.22-M, and ITSP.40.006 v2 compliant data sanitization.
FEATURES
- High-Speed Wiping: Securely erase drives at speeds exceeding 31GB/min, with up to 60GB/min on NVMe drives using the optional USB-to-NVMe adapter.

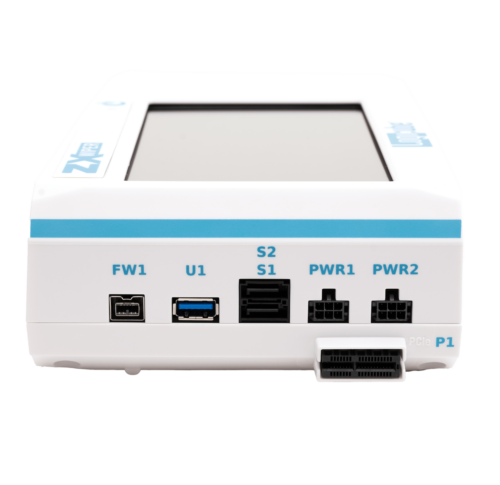

- Multi-Target Wiping: Sanitize up to 12 drives simultaneously with support for 4 SAS/SATA, 4 USB 3.2 Gen 2, 2 native PCIe, and 2 FireWire 800 ports.
- DoD Wipe: Supports DoD 5220.22-M seven-pass secure erase.
- Secure Erase: Performs industry-standard single-pass Secure Erase.
- Custom Pass Wipe: Configure custom wipe passes, including Gutmann 35-pass wiping using Task Macro.
- Verification: Partial and full verification options ensure compliance with NIST 800-88 and ITSP.40.006 v2 standards.
- Network Support: Integrated Gigabit Ethernet port enables remote management and operation.
- Multi-Session Capability: Run up to five wipe tasks simultaneously.
- Icon-Based User Interface: Intuitive interface simplifies navigation and operation.
- Remote Operation: Manage one or multiple ZX-Wiper units remotely using any web browser.
- 7″ Color Touchscreen: Responsive touchscreen for easy system control.
- Advanced Administration: Configure users, network settings, and saved system profiles.
- Audit Trail: Export detailed wipe reports in HTML, XML, or PDF formats.
- Task Macro: Automate sequential wipe operations to improve workflow efficiency.
- HDMI Output: Connect an external monitor or projector.
- USB 3.2 Gen 2 Support: Four high-speed USB ports support modern storage devices and USB peripherals.
- HPA/DCO Support: Securely erase Host Protected Area (HPA) and Device Configuration Overlay (DCO).
- Warranty: Includes a one-year parts and labor warranty with optional extended warranty coverage.
SPECS
- Power Requirements: 12V DC Grounded, 11.5A
- Power Consumption: <140W (with drives)
- Operating Temperature: 0–40°C (32–104°F)
- Relative Humidity: 20%–80%
- Net Weight: 2.0 lbs (0.91 kg)
- Dimensions: 7.6″ × 5.5″ × 2.6″ (193 × 139.7 × 66 mm)
- Agency Approvals: RoHS Compliant, FCC Part 15 Class A, CE
ACCESSORIES
- PCIe / NVMe / AHCI / M.2 / mSATA Adapter Kit
- M.2 NVMe PCIe SSD to USB Adapter
- U.2 NVMe to PCIe Adapter
- mSATA to SATA Adapter
- M.2 SATA to SATA Adapter
- microSATA to SATA Adapter
- eSATA Cable
- USB Flash Card Reader
- 2.5″/3.5″ IDE to SATA Adapter
- 1.8″ ZIF to IDE & 1.8″ IDE to SATA Adapter Kit
- SCSI Module Option (for SCSI drive support)
