WriteProtect™-DESKTOP

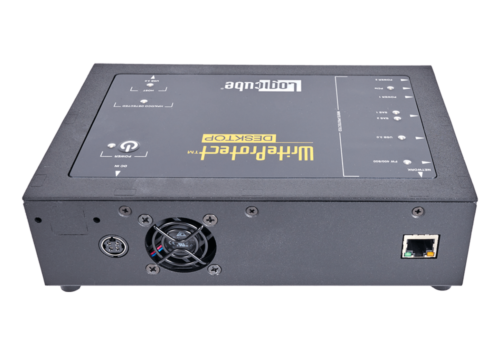

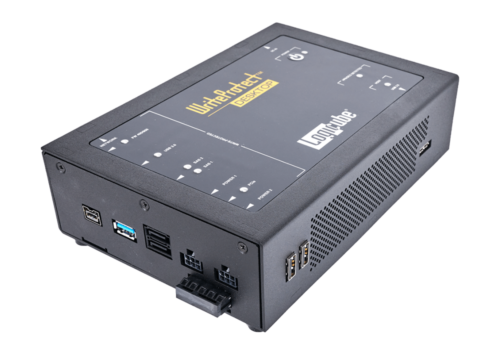

WriteProtect-DESKTOP – All-in-One Multi-Drive Forensic Write-Blocker
Related products
Description
The WriteProtect-DESKTOP is the only portable write-blocker that supports 6 hard drive interfaces in one device,supporting SAS, SATA, FireWire, PCIe, USB3 and IDE source drives. The WriteProtect-DESKTOP allows you to connect and image multiple source drives simultaneously with your forensic imaging software
DESCRIPTION
The WriteProtect-DESKTOP provides digital forensic professionals with fast, secure, read-only write-blocking of suspect hard drives. It is a portable write-blocker supporting multiple interfaces in a single device, making it ideal for both lab and field forensic acquisitions. A bay version is also available for forensic workstation integration.
- Fast USB 3.0 superspeed host connection
- Supports SAS, SATA, FireWire, USB 3.0, IDE source drives
- Supports PCIe SSDs (M.2 SATA/AHCI/NVMe), PCIe and mini-PCIe via optional adapters
- Browser-based interface for preview, updates, and HPA/DCO management
- Supports simultaneous imaging of multiple source drives
SPECS
- Power Requirements : 72 Watts (including 2 hard disks + 1 USB 3.0 to SATA drive)
- Power Supply Voltage (DC IN) : +12VDC @ 12.5A
- Output Voltage (DC OUT) : +5VDC @ 2.5A, +12VDC @ 2.5A
- Net Weight : 2.0 lbs (0.90 kg)
- Dimensions : 7.87″ L × 5.37″ W × 2.37″ H (19.9 × 13.6 × 6.0 cm)
- Agency Approvals : RoHS Compliant
FEATURES
- Ultra-Fast USB 3.0 : High-speed USB 3.0 host connection for efficient forensic operations.
- Multi-Interface Support : Supports SAS, SATA, USB 3.0/2.0/1.1, FireWire, IDE, and PCIe storage devices.
- PCIe Support : Supports M.2 PCIe (NVMe, AHCI, SATA), PCIe, and mini-PCIe via optional adapters.
- Multiple Source Ports : Includes 2 SAS/SATA, 1 USB 3.0, 1 FireWire, and 1 PCIe write-protected port plus Gigabit Ethernet.
- Multi-Tasking : Enables simultaneous imaging of multiple source drives using forensic software.
- Browser-Based Interface : Manage operations, updates, and network settings via web interface.
- Drive Preview : Preview connected drives via browser interface for quick triage.
- LED Monitoring : 8 LED indicators for power, activity, host, device, and HPA/DCO status.
- HPA/DCO Support : Detect and manage hidden drive areas via software interface.
- Broad Drive Compatibility : Supports IDE, ZIF, mSATA, microSATA, eSATA, flash media, and PCIe drives via adapters.
- Forensic Compatibility : Works with major forensic imaging and analysis software tools.
- Portable Design : Compact and lightweight for lab and field use.
- Warranty : 1-year standard warranty with optional extensions available.
ACCESSORIES
- PCIe Adapter Kit : Supports M.2 PCIe, NVMe, SATA, mSATA, and mini-PCIe drives.
- mSATA to SATA Adapter : Enables cloning of mSATA drives.
- microSATA to SATA Adapter : Supports microSATA drive cloning.
- eSATA Cable : For eSATA drive connections and cloning.
- U.2 NVMe to PCIe Adapter : Supports U.2 NVMe SSDs.
- Extended SATA Cable : 18-inch SATA connection cable set.
- IDE to SATA Adapter : Supports 2.5″ and 3.5″ IDE/PATA drives.
- 1.8″ ZIF & IDE Adapter : Adapter pack for 1.8″ IDE/PATA drives.
- USB Flash Card Reader : Supports SD cards and CompactFlash media.
- USB to SATA Adapter : Converts USB 3.0 ports for SATA drives.
- SATA/SAS Cable Set : Replacement data and power cables.
For more detailed features and specifications, Click here
