TransPAC

Description

For added mobility and portability, the TransPAC is a new and unique battery-powered solution. While most of our products are portable because of their compact form factor and light weight, the TransPAC takes it one step further; it is battery-powered. Supporting a 220W power supply with 4x Li-ion 81Whr battery packs, you can use the TransPAC on the field for extended periods. It comes with a full HD display and can hold up to 16TB of HDD storage or 8TB of SSD storage. It is manufactured from high-strength, low weight aluminum creating a robust, powerful, reliable and ergonomic portable system. Featuring powerful computing elements, this portable can be configured to fulfill many demanding applications, especially for ones that are on the field.

Battery Charging Dock
The battery charging dock charges the hot-swappable DR202 batteries for the TransPAC and NotePAC series. This kit includes one battery charging dock, an AC-DC adapter, and a power cord. It features a DC-input jack, six battery slots, and six LEDs for power and charging indicators. Connect the AC-DC adapter cable to the DC-input jack and then insert the battery packs in the correct direction into each slot to charge. After inserting the battery pack in the slot, the LED indicators light up (orange) if the battery pack is being recharged. When fully charged, the indicator will turn blue.


APPLICATIONS


• Battery-Powered Solution : The TransPAC is a unique portable computer that was designed for users who needed a truly mobile workstation without sacrificing the power and capabilities of the standard desktop workstation. It is battery-powered. Equipped with a 220W power supply with 4x Li-ion 81Whr battery packs, you can use the TransPAC on the field solely on batteries for up to 4 hours or use the supplied power supply to allow for continuous usage while charging.

TECHNICAL SPECIFICATIONS


• Display : 17.3″ FHD 1920×1080 – 300 nits.
  Upgradable options : 1000 nits, UHD 3840×2160, 60Hz Display, 2K, 144Hz displays, projected capacitive or resistive touchscreen option
• CPU : Latest Intel® Xeon, Intel® Core, Intel® Core™ Ultra, or AMD Ryzen™ 7
• Memory : Up to 768GB DDR5 RAM
• Graphics Card : Integrated HD graphic controller or application-specific graphic controller
• Expansion Slots : Up to 4
• Storage : Up to 20TB (Removable Option Available)
• Power Supply : 220W External AC-DC Adapter, 4x 81W batteries
• Dimensions : Height : 14.05″ (357mm), Width : 16.46″ (418mm), Depth : 6.96″ (177mm)
• Weight : Chassis : ~18.7 lbs (8.5kg)
• Touch Option : Touchscreen Optional
• WiFi/Bluetooth : WiFi and Bluetooth Optional
• RAID : RAID 0/1/5/10
• Keyboard & Mouse : 105-key Keyboard With Integrated Touchpad. Available in a variety of languages.
• Transit Case : Includes Padded Rolling Transit Case, Optional : Hardened Case Available
• Quality : ISO 9001

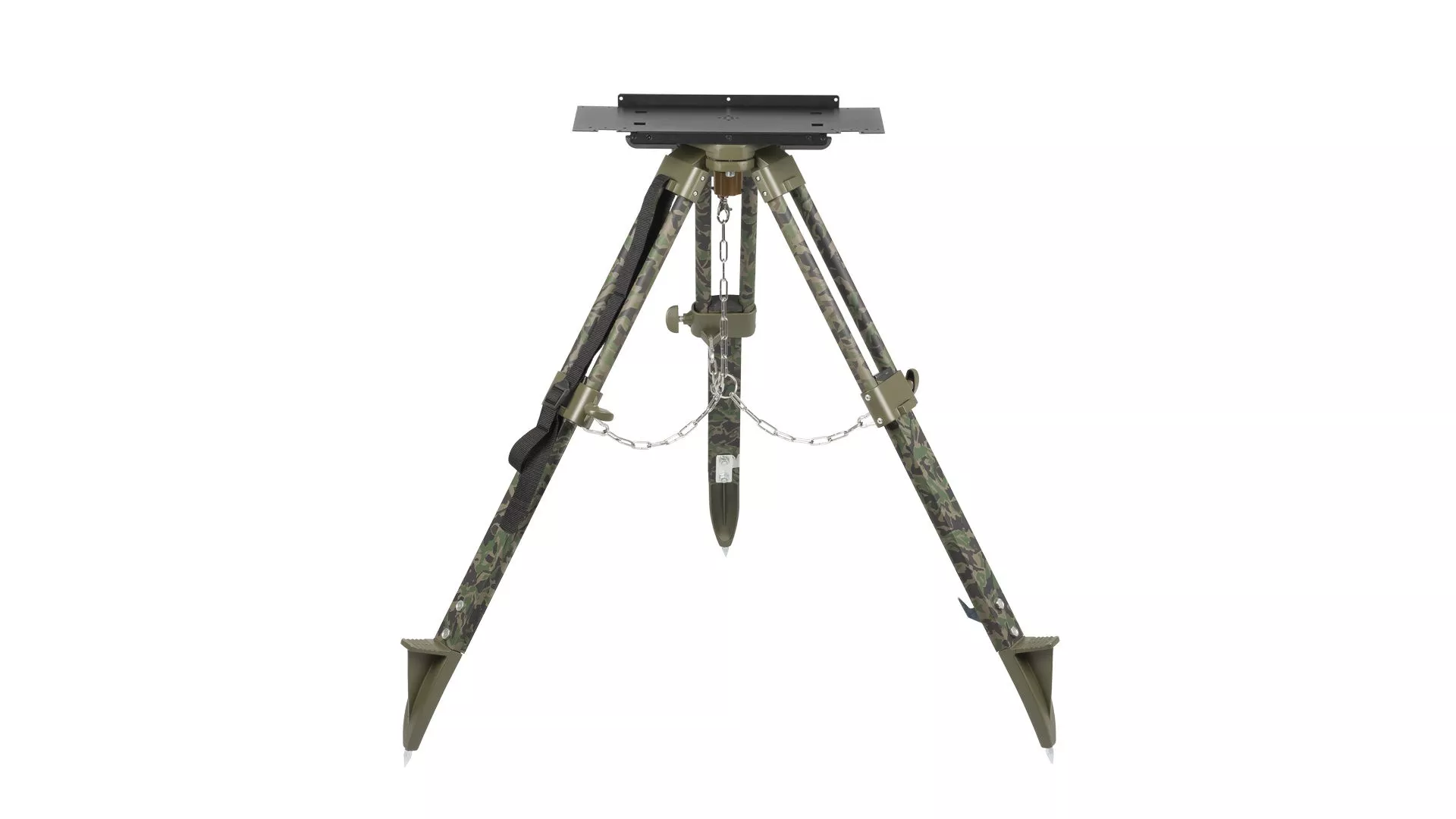

• Accessories : Tripod And Charger
• Charger Specs : Charging Slots : 3 or 6, Charging Voltage : 12.6 ± 0.3V, Charging Current : 4.7 ± 0.2A, Input Voltage : 19V, Operating Temperature : 0~40°,
  Storage Temperature : -20~60°C, Humidity : 0~90% non-condensing, Dimensions : 12.6″L x 6.2″W x 3.2″H, Weight : 2.86 lbs
• Customization : Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more.
