EchoPlus-NG
Fast, portable and budget-friendly1 to 1 hard drive duplicator
Related products
Description

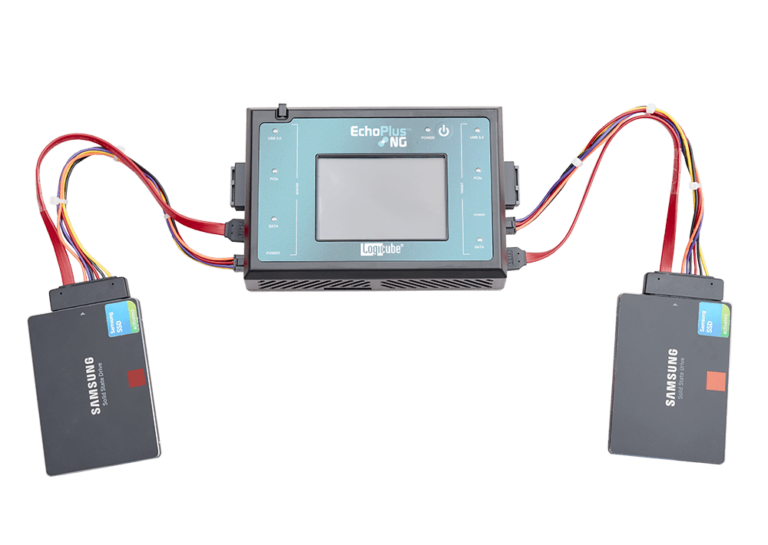

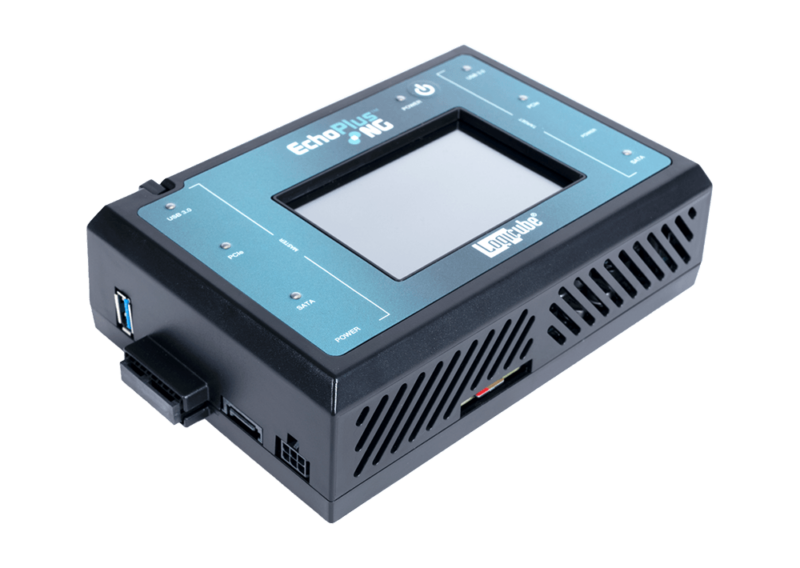

The EchoPlus-NG is a fast, portable and budget-friendly1 to 1 hard drive duplicator supports cloning PCIe M.2, USB 3.0 and SATA hard drives. The EchoPlus™-NG delivers blazing fast hard drive cloning at 18 GB/min. This portable cloner provides advanced features not seen in your typical entry-level duplicator, making it easy to accomplish all your cloning and wiping tasks including drive testing, software and OS upgrades, back-ups, new PC rollouts and content/application distribution.
Description: The EchoPlus™-NG is a fast, portable, and cost-effective 1-to-1 hard drive duplicator designed for cloning SATA, USB 3.0, and PCIe M.2 drives. Delivering cloning speeds of up to 18GB/min, it supports Mirror and CleverCopy modes, secure drive wiping, and optional adapters for expanded drive compatibility, making it ideal for drive upgrades, backups, deployment, and testing.
FEATURES
- High-Speed Duplication: Clone drives at speeds of up to 18GB/min.
- Multiple Cloning Modes: Supports Mirror (bit-for-bit) and CleverCopy (copies only used sectors) for faster cloning.
- Single Target Cloning: Clone from one master drive to one target drive.
- SATA Support: Dedicated SATA master and target ports for high-speed SATA cloning.
- Hash Verification (Optional): Verify clone integrity using SHA-1, SHA-256, or MD5 hashing.
- PCIe Support: Clone PCIe M.2 AHCI, NVMe, PCIe, and Mini PCIe drives using optional Logicube PCIe adapters.
- Multi-Image Master: Store multiple master images for rapid deployment to target drives.
- USB 3.0 Support: Clone USB enclosures and flash drives using dedicated USB 3.0 master and target ports.
- Remote Operation: Control cloning operations remotely through a web browser.
- Broad Drive Compatibility: Supports IDE, ZIF, mSATA, microSATA, eSATA, and flash media with optional adapters.
- Advanced Administration: Create user profiles and save system configurations.
- Wide File System Support: Compatible with Windows, Linux, and macOS file systems.
- Compact Design: Lightweight portable unit measuring 6.2″ × 4.2″ × 2.1″ and weighing only 0.8 lbs (0.36 kg).
- Write-Protected Master: Automatically protects source drives against accidental modification.
- Audit Trail: Generates detailed cloning reports with digital signatures.
- Secure Drive Wiping: Supports Secure Erase, DoD 7-pass wipe, custom wipe passes, and NIST 800-88 compliant sanitization.
- Drive Health Monitoring: Displays advanced S.M.A.R.T. drive information.
- Error Handling: User-configurable bad sector management for improved cloning reliability.
- HPA/DCO Support: Clone or wipe Host Protected Area (HPA) and Device Configuration Overlay (DCO).
- Color Touchscreen: Intuitive touchscreen interface with integrated stylus.
- Warranty: Includes a one-year parts and labor warranty with optional extended warranty coverage.
SPECS
- Power Requirements: 12V DC, 7 AMP
- Power Consumption: <72W (with drives)
- Operating Temperature: 32–104°F (0–40°C)
- Relative Humidity: 20%–80%
- Net Weight: 0.8 lbs (0.36 kg)
- Dimensions: 6.2″ × 4.2″ × 2.1″ (15.7 × 10.6 × 5.3 cm)
- Agency Approvals: RoHS Compliant
ACCESSORIES
- PCIe Adapter Kit
- mSATA to SATA Adapter
- microSATA to SATA Adapter
- eSATA Cable
- U.2 NVMe to PCIe Adapter
- 18″ Extended SATA Cable Set
- 2.5″/3.5″ IDE to SATA Adapter
- 1.8″ ZIF to IDE & 1.8″ IDE to SATA Adapter Kit
- USB Flash Card Reader
- SATA Data & Power Replacement Cable
- Soft-Sided Carrying Case
